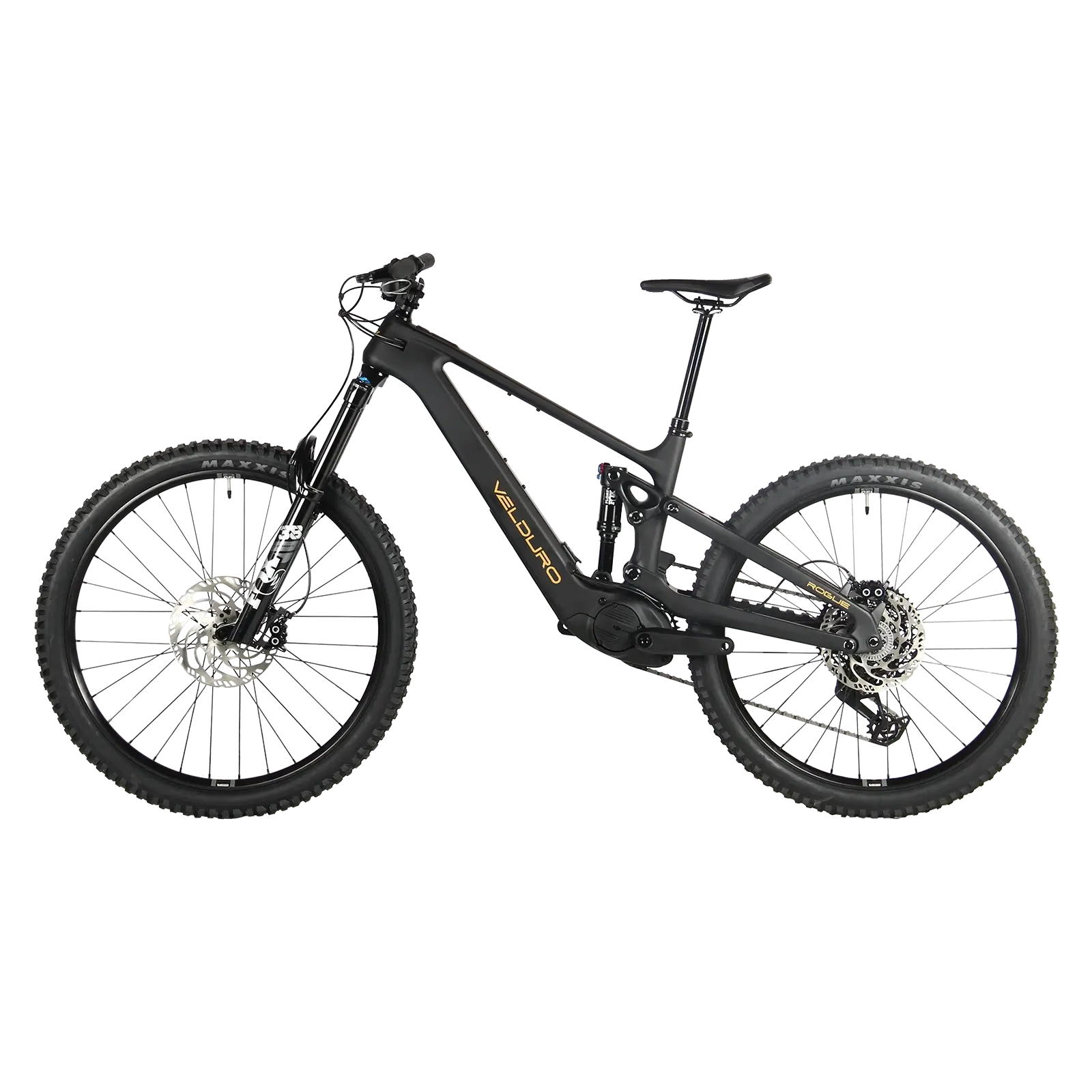

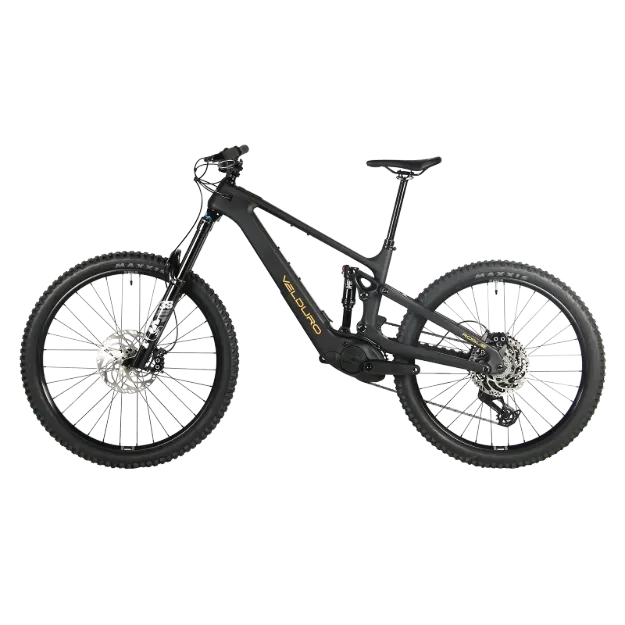

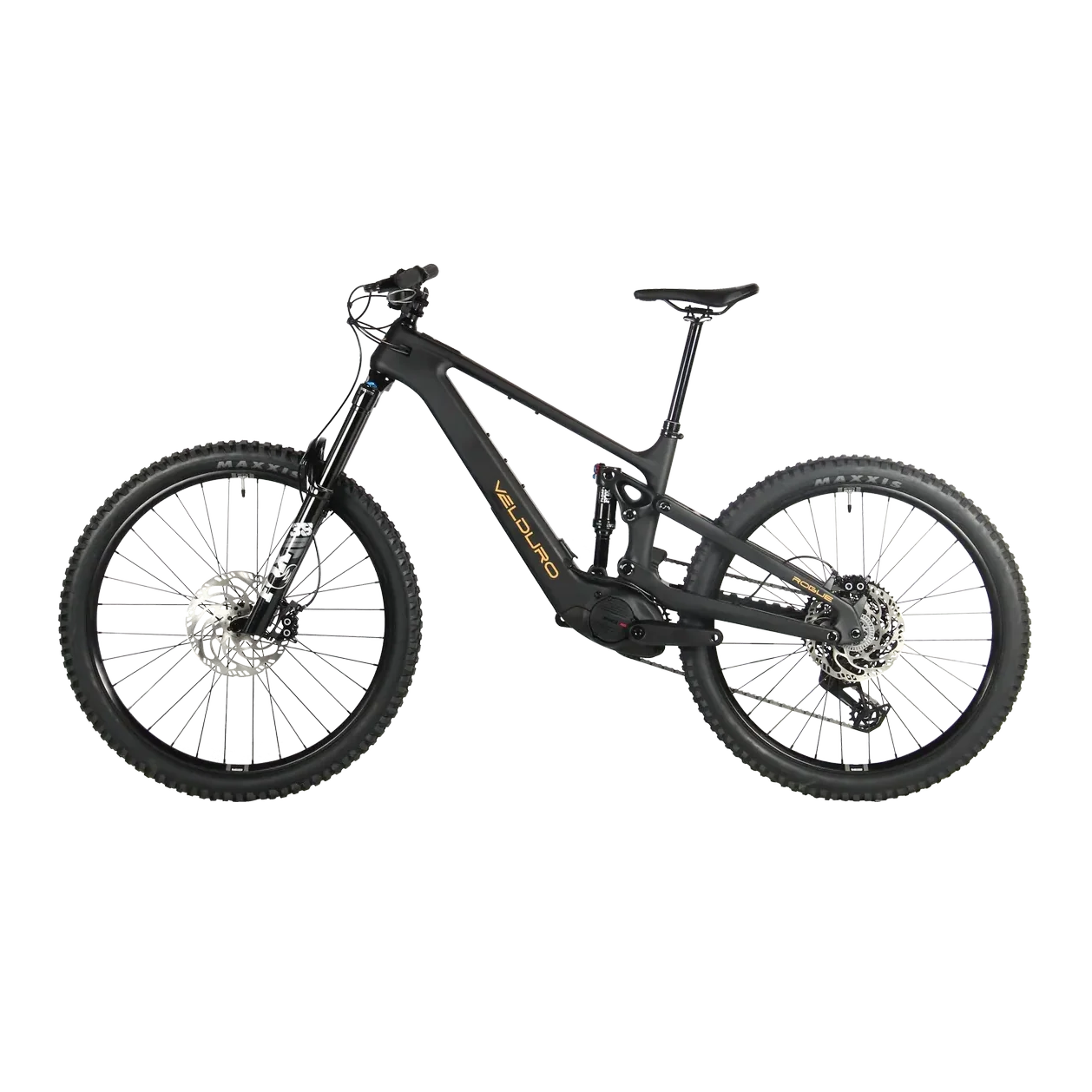

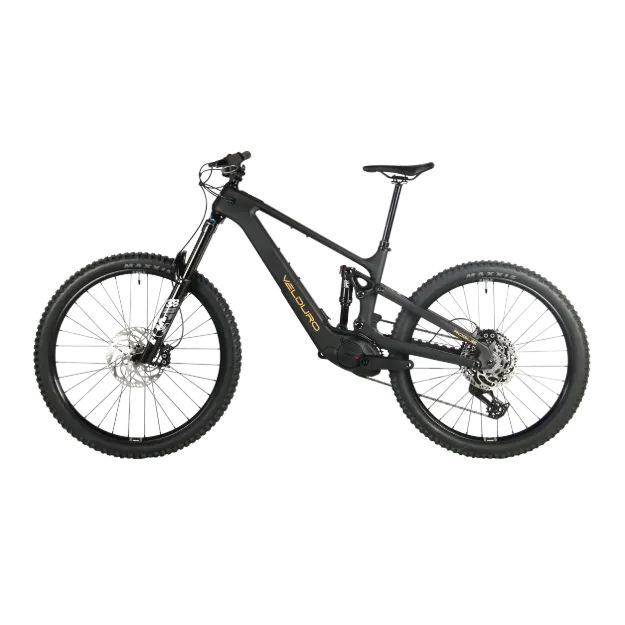

The Rogue X is an affordable e-enduro with no compromises. It shares the same electrical components and frame as the Rogue R, paired with the same race-grade FOX 38 and Float suspension and high-strength SRAM Eagle 70 transmission drivetrain. Magura MT5 brakes deliver superior braking power, making it an excellent choice for both climbing and downhill.
Specs
Avinox Drive System
Motor: AVINOX M2S 130Nm 1300w, boost to 150Nm
Battery: 800 WH
Charger: AVINOX 36V 4A
Display: AVINOX DP100
Frame & Cockpit
Carbon fibre frame
165mm rear travel, up to 170mm with 27.5 rear wheel
mid-pivot i-track suspension
integrated battery
rear wheel flip chip
shock position flip chip
inner cable routing
Boost 12x148mm
16T idler, with oversized bearings.
Headset: FSA No.57 Alloy MTB, ZS44/56mm
Saddle: Fizik Terra Aidon X5.
Dropper: Velduro Enduro mechanical, Dia. 31.6, Travel: S:170mm, M & L & XL: 200mm
Handlebar: Velduro Enduro, Alloy, 35D 800L rise 20
Stem: Velduro Enduro, Alloy, 35D, 40mm long
Grips: Velduro MTB grips, 22.4mm, one side ring, closed end
Drivetrain, Brakes & Cranks
Brakes: Magura MT5 HC,hydraulic brake, 4-Piston
Discs: Magura MDR-C heavy duty disc, front 220mm, rear 203mm
SHIFT LEVER: Sram Eagle 70 shifter
REAR DERAILLEUR: Sram Eagle 70 transmission mechanical
CRANKSET: Avinox SL crank 155mm
CASSETTE: Sram XS-1270 10-52T Eagle Transmission
CHAIN :Sram Eagle 70 Flat top Chain
CHAINWHEEL: Sram 34T eagle Transmission E-MTB Chainring 104 BCD
Wheels & Tires
Wheel set: Velduro e-Enduro Alloy, EA-30
Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 32h straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12thru-axle, 32h, straight-pull, 6-bolt, 21T
Spokes: Sapim D-light J-bend
Rim: Alloy F 29’/R 27.5’, 30mm internal width
Front tire: Maxxis Assegai 29*2.5 3C MaxxGrip/DD/TR BK
Rear tire: Maxxis Minion DHR2 27.5*2.4 3C MaxxTerra/DD/TR BK
Your Rogue is tubeless ready, but comes with tubse
Suspension
Fox Float 38 P-S 2026, 29 inch, 170mm, Grip, 15X110mm
Fox Float P-S 2026, 205X65mm (custom factory tuned for the Rogue)
